I bought a cheap Chinese Mini VCI J2534 cable for diagnostics and auto settings. I used it and found that you can do a lot with it through the Toyota Techstream service program. And here he came to me: Package includes the drivers for the cable and the program itself-Toyota Techstream with V10.10.018 version. Cable for diagnosis Mini-VCI J2534 I post links for download:, drivers Then I will tell you how to install the driver and the program under Windows 7 or 8.1 x64. The instruction can be found on the Internet, but I will write it here. INSTALLATION INSTRUCTIONS Techstream on Windows 7, 8.1 – x64 bit If you bought the and there is no unpacked driver on the disk, and there is only the MVCI Driver for TOYOTA.msi installer that does not really work when installed on any Windows x64 and gives an error, and it must be installed, otherwise the sw will not work, and it does not matter. This problem can be solved by installing the MVCI Driver for TOYOTA.msi manually as follows: 1.

1. Mini Vci Driver Windows 10
2. Mini Vci J2534 Driver Windows 7 Download
3. Mini Vci J2534 Driver

Mini Vci Driver Windows 10

Create a folder on drive C: Temp 2. Copy to our C: Temp folder our MVCI Driver for TOYOTA.msi file 3. With Administrator rights open and run the following command: msiexec / a “C: temp MVCI Driver for TOYOTA.msi” / qb TARGETDIR = c: temp mvci this command will extract all content from the MSI file to the C: Temp mvci folder 4.

We delete the file MVCI Driver for TOYOTA.msi from the folder C: Temp mvci, it is no longer needed, we can also remove it from the folder C: Temp 5. We go in C: Program Files (x86) and create there folder XHorse Electronics and in it one more MVCI Driver for TOYOTA TIS and move there all the contents from the folder C: Temp mvci 6. Connect the MINI VCI cable to the USB port. IMPORTANT: When the automatic driver installation process starts, it must be canceled and the device will not be detected. Open the Device Manager and locate the two faulty devices in the list. They will have a yellow icon indicating that Windows could not install the drivers for them. Now right click on the faulty device, select “Update Driver”, then “search on this computer” next “Browse my computer” and specify the path to “C: Program Files (x86) XHorse Electronics MVCI Driver for TOYOTA TIS “(” include subfolders “check box). Click the “Next” button and wait for the drivers to be installed.

Now you should see two new devices: “Controllers USB USB Serial Converter” and “Ports (COM & LPT) USB Serial Port (COM —)”. Where instead of a line will be your figure COM port. Next, go to the path “C: Program Files (x86) XHorse Electronics MVCI Driver for TOYOTA TIS” and run the file “FirmwareUpdateTool.exe”. In the opened program, click the “Device Info” button. You should see the “connected device” graph filled.

If you see this, then your works under a 64-bit version of Windows and can be used by other programs, such as Techstream. There is a connection with the cable! Now install Techstream using the software “Techstream.exe” of any version. after installation do not run it yet. To activate it, you need to change the TISFunction = 1 line in the C: Program Files Toyota Diagnostics Techstream Env IT3System.ini file and change it to “0” and save the file. Now you need to make the program see the cable So that Techstream sees MINI-VCI under Windows x64, the Registry should be changed like this: 1.

Hello, everyone! Recently I‘ve got myself the MINI VCI cable to play with.

As it turned out, with little manual tweaking it is possible, contrary to the popular belief, to get it working under Windows 64-bit. So, I decided to share the instructions, which hopefully will save someone a headache of dealing with dual boot and virtual machines with Windows XP. Equipment:. MINI VCI cable for TOYOTA TIS Techstream. I‘ve bought mine from Amazon for around $30.

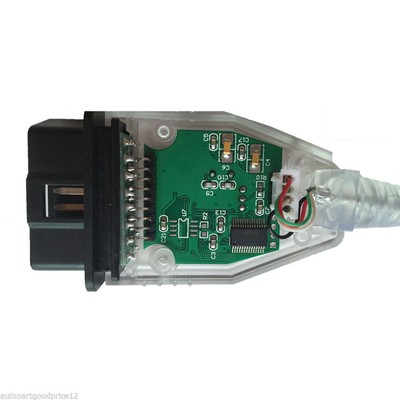

The cable is about 4’ long, with translucent casing and “MINI-VCI J2534 Standard OBDII Communication Interface” sticker: The cable comes with a mini CD with drivers and Toyota Techstream software. Mine was advertised as “Newest V8.00.034 MINI VCI for TOYOTA TIS Techstream Diagnostic Cable & Software”. The “newest” refers to the version of bundled Techstream, rather than the cable firmware, as cable shows serial number “MVCI006000001” and firmware version 1.4.1, which is widely known as “cheap clone of the original XHorse MVCI cable”. A laptop running 64-bit version of Windows 7/8. Mine is actually Windows 8 x64, but for Windows 7 the configuration procedure should be identical. The content of bundled mini-CD: The Techstream, MVCI drivers and TIS Key all can be on the Internet as well.

Steps:. Download and install a trial version of.

Using WinRAR Unpack the following files from mini-CD to a temp folder anywhere on your hard drive (e.g. Toyota Techstream 8.00.034.rar - TechstreamUpdateV8.10.021.rar - MVCI Driver for TOYOTA.rar - TIS KEY.rar. Now open WinRAR again, navigate to the temp folder with unpacked files and double click the TISKey.exe in WinRAR. The TISKey.exe is actually a self-extracting (SFX) RAR archive file. Once executed, it simply unpacks and copies the IT3System.ini file to the Techstream folder. Extract that IT3System.ini to the same folder for now.

Installing MVCI Driver for TOYOTA This is the step which most people stumble upon as “MVCI Driver for TOYOTA.msi” installer indeed does not work on Windows x64. The workaround is to install it manually, as follows:. Open Command Prompt in Administrator Mode. Navigate to the c: temp folder and run the following command line: msiexec /a 'C: temp MVCI Driver for TOYOTA.msi' /qb TARGETDIR=c: temp mvci This will extract the content of the MSI file to the c: temp mvci folder:. Delete the “MVCI Driver for TOYOTA.msi” there and then copy the whole content of c: temp mvci to 'C: Program Files (x86) XHorse Electronics MVCI Driver for TOYOTA TIS'. Plug the MINI VCI cable to the USB port.

Open the Device Manager and locate two failing devices in the list. Both will appear with yellow icon (usually under “Other”), indicating that Windows failed to install drivers for them.

Now, right click each failing device, select Install Driver, then “Browse my Computer” and point it for 'C: Program Files (x86) XHorse Electronics MVCI Driver for TOYOTA TIS' (enable the “include subfolders” flag). Click “Next” and wait until drivers are installed. You should now see two new devices: “Universal Serial Bus Controllers USB Serial Converter” and “Ports (COM & LPT) USB Serial Port (COM5)”. Run the FirmwareUpdateTool.exe from the 'C: Program Files (x86) XHorse Electronics MVCI Driver for TOYOTA TIS'. Click “Device Info”.

You should see the “device connected” screen like this: If you see this, it means your MINI VCI is up and running under Windows x64 and can be used by other programs, such as Techstream. IMPORTANT: Some people have reported that updating firmware on this “cheap clone” cable may render it dead. So, the Firmware Update Tool should not be used for anything, but checking that the device is connected and working properly. Now install Techstream software using 'Techstream 8.00.034.exe' and then update to 8.10 with 'TechstreamUpdateV8.10.021.exe'. Do not launch it yet. To activate it, copy the IT3System.ini you extracted before to 'C: Program Files (x86) Toyota Diagnostics Techstream Env '.

Alternatively, you may copy two files from the C: Program Files (x86) XHorse Electronics MVCI Driver for TOYOTA TIS ProgramFilesFolder Toyota Diagnostics Techstream Env' to 'C: Program Files (x86) Toyota Diagnostics Techstream Env ', which seem to do the trick as well. Registry Hack: for Techstream to recognize MINI-VCI under Windows x64, the Registry has to be modified as: Windows Registry Editor Version 5.00 HKEYLOCALMACHINE SOFTWARE Wow6432Node PassThruSu pport.04.04 HKEYLOCALMACHINE SOFTWARE Wow6432Node PassThruSu pport.04.04 XHorse - MVCI 'Name'='XHorse - MVCI' 'Vendor'='XHorse ELECTRONICS Co.,Ltd.'

I too bought the adapter from Amazon for $27 with the intention of either running a VM with XP or a dual-boot with Win7-32 bit in order to utilize the adapter and Techstream. That was until I found your post, followed your directions and VOILA!! Everything works as you described. There was a few hickups with the driver update since I tried to install it before without the registry hack and got stuck with a non-working driver for the USB port but I forced it to use the driver using your method and I got thru it. I ran a health check on my wife's 2007 RX400h and everything checks out. Thanks again, you the man!

Great instruction Alex, Thanks. I may have a slightly different version, most things look the same as above but not everything. I am having some trouble with step 4d, I don't see any failing devices. When I plug and unplug the MVCI cable I can see a USB device come and go, so it must be the cable. I try to install the new driver, but it says the correct driver is already installed.

Mini Vci J2534 Driver Windows 7 Download

It try it again, same thing, Ok, maybe it is, so I move on. The firmware update tool works, and I can see the cable, so it must be good. Now #6, Registry hack.

Then they will travel to Rwanda to find a supplier and to trace the producer of uranium, which is a crazy professor, in the service of a powerful Russian mafia boss. Mediafire pc games.

Mini Vci J2534 Driver

In my version, under Pass Thru Support.04.04.
